Description

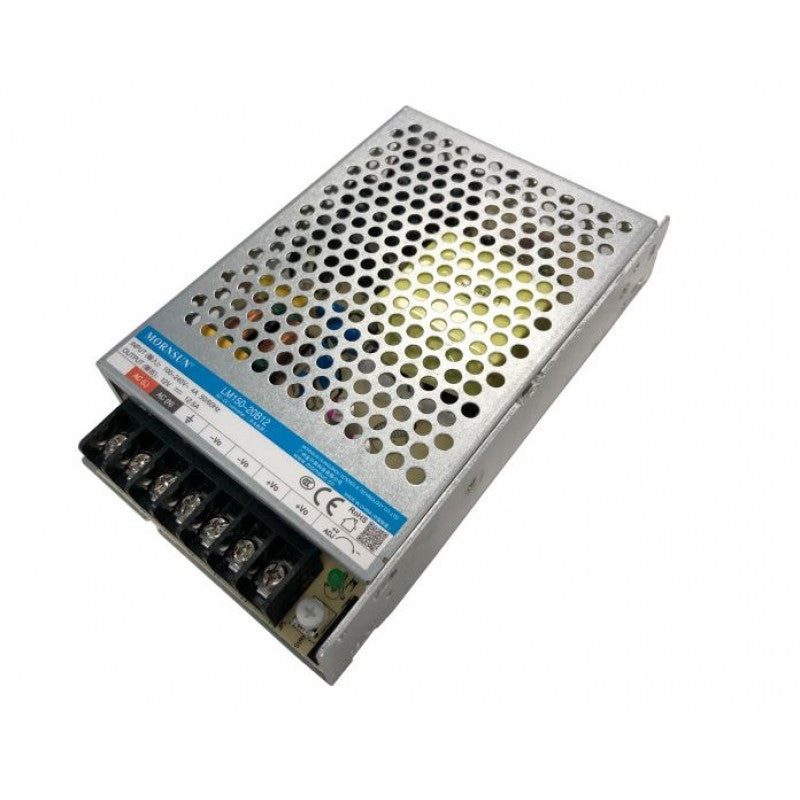

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
The LM150-20B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features
- Universal AC input
- Accepts DC input voltage
- Cost-effective
- Low no-load power consumption
- High efficiency
- High reliability
- Double or reinforced insulation
- Excellent EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards
- Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications
check out : Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 150W |
| Series | LM150-20B |
| Part Number | LM150-20B12 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 12.5A |
