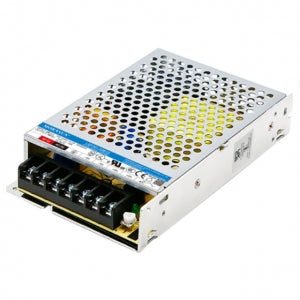

Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply

The LM150-22B12 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range (165-264VAC) and is capable of delivering a power output of 150W. This power supply offers high efficiency (86%) and is designed for various industrial applications. With its compact design and cost-effective features, the LM150-22B12 is a reliable choice for powering your industrial equipment.

Features:

• Universal input voltage range: 165-264VAC
• Power output: 150W
• Input voltage range: 180-370VDC
• Output voltage: 12VDC
• Output current: 12.5A
• High efficiency: 86%
• Isolation voltage: 4000VAC

check out : Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply

Specifications:
