Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply

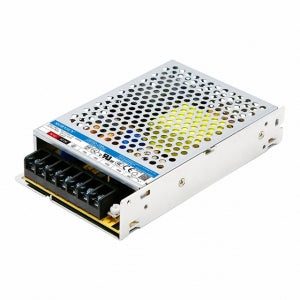

The LM150-23B15 is a 150W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85-305VAC or 120-430VDC, and a single output of 15VDC at 10A. The power supply is also isolated from the input by 4000VAC, making it safe to use with sensitive equipment. Other features include a soft start, overload protection, and thermal shutdown.

Features:

• Universal AC input of 85-305VAC or 120-430VDC
• Single output of 15VDC at 10A
• 4000VAC isolation
• Soft start
• Overload protection
• Thermal shutdown

check out : Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM150-12A15 AC/DC150W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply

Specifications:
