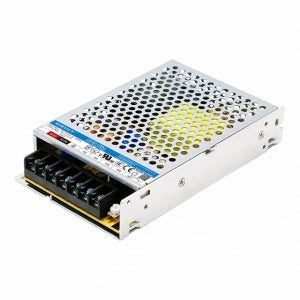

Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply

The LM150-23B36 is a 150 watt, 23 volt AC/DC power supply from Mornsun America, LLC. It is a closed-loop, constant-current, constant-voltage power supply with a universal input voltage range of 90 to 264 VAC. The LM150-23B36 has a ripple and noise rejection of 60 dB and a transient response time of <1 microsecond. It is also equipped with a thermal overload protection circuit and a short circuit protection circuit.

The LM150-23B36 is a versatile power supply that can be used in a variety of applications, including industrial control, medical equipment, and telecommunications. It is also a good choice for use in high-reliability applications where high ripple and noise rejection and fast transient response are required.

Features:

• 150 watt output power
• 23 volt output voltage
• Universal input voltage range of 90 to 264 VAC
• Closed-loop, constant-current, constant-voltage regulation
• Ripple and noise rejection of 60 dB
• Transient response time of <1 microsecond
• Thermal overload protection
• Short circuit protection

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply

Specifications
