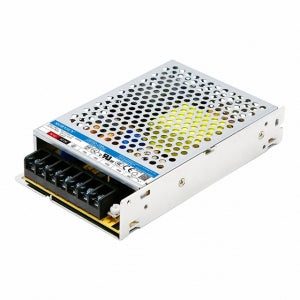

Mornsun LM150-23B48 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-23B48 AC/DC 150W Enclosed Switching Power Supply

The LM150-23B48 is a high-performance, enclosed AC/DC converter from Mornsun. It is designed for a wide input voltage range of 85 to 305 VAC or 120 to 430 VDC, and can output up to 150 watts at 48 volts. The LM150-23B48 features a high efficiency of up to 89%, and a ripple rejection of up to 80dB. It is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.

Features:

• High efficiency of up to 89%
• Ripple rejection of up to 80dB
• Wide input voltage range of 85 to 305 VAC or 120 to 430 VDC
• Output voltage of 48 volts
• Output current of 3.33 amps

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM150-23B48 AC/DC 150W Enclosed Switching Power Supply

Specifications
