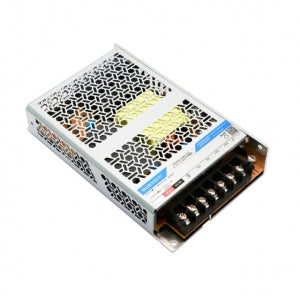

Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS

Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS

The LM200-22B12R2 is an enclosed AC/DC converter from Mornsun. It has a universal AC input of 176-305 VAC or 240-430 VDC, and a single output of 12V at 17.5A. The converter is rated for 200W output power, and has a high efficiency of up to 95%. It also features low no-load power consumption, high reliability, and double or reinforced insulation. The LM200-22B12R2 meets a variety of safety standards, including IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC/BS EN62368, EN/IEC60335, EN651558, EN62477, and GB4943. It is widely used in a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS

Specifications:
