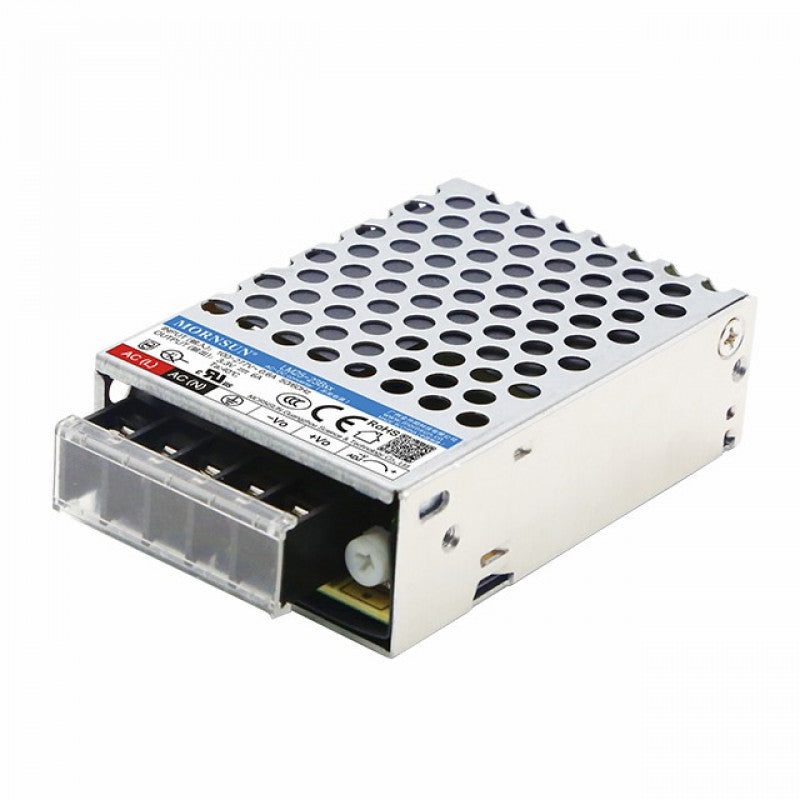

Mornsun LM25-23B12 AC/DC 25W Enclosed SMPS

Mornsun LM25-23B12 AC/DC 25W Enclosed SMPS

The LM25-23B12 series is a line of enclosed AC-DC switching power supplies from Mornsun. These power supplies feature universal AC input, DC input voltage acceptance, low no-load power consumption, high efficiency, and high reliability. They also offer excellent EMC performance and meet a number of safety standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943. The LM25-23B12 series is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM25-23B12 AC/DC 25W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM25-23B15 AC/DC 25W Enclosed SMPS

Package Includes:

1 x  Mornsun LM25-23B12 AC/DC 25W Enclosed SMPS

Specifications:
