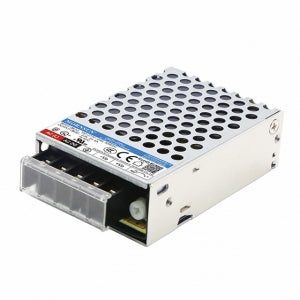

Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply

Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply

The LM25-23B48 is a 48V, 27.36W AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 100-430VDC, making it suitable for use in a variety of applications. The power supply is also protected against overvoltage, undervoltage, overcurrent, and short circuit.

Features:

• 48V output voltage
• 27.36W output power
• Wide input voltage range: 85-305VAC or 100-430VDC
• Protection against overvoltage, undervoltage, overcurrent, and short circuit
• Compact and lightweight design
• Conformal coated for environmental protection

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply

Specifications:
