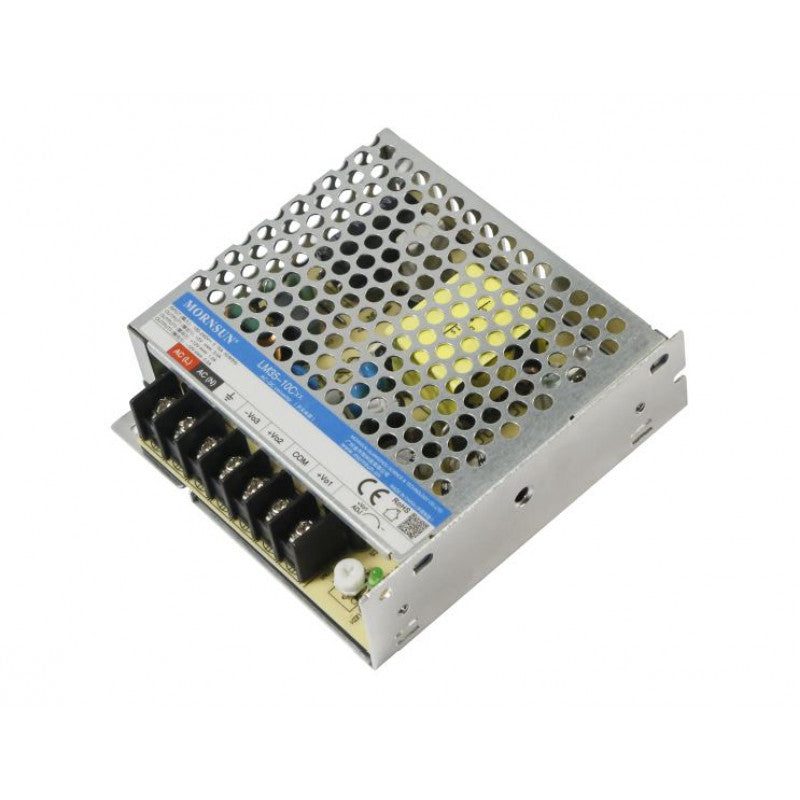

Mornsun LM35-10C051212-10 AC/DC 35W Enclosed Switching Power Supply
The LM35-10C051212-10 is a power converter with triple output versions. This means that it can independently supply three different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30°C to +70°C, without the need of a fan for further heat dissipation.
The converters have excellent EMC protection and meet the requirements of IEC61000 standard, CISPR32/EN55032, class B. They also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio. They are the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.
check out : Mornsun LM35-10C052412-05 AC/DC 35W Enclosed Switching Power Supply
Features
- Triple output versions
- Wide temperature range (-30°C to +70°C)
- Fanless design
- Excellent EMC protection
- Meets safety standards
- Variety of protection features
- High-performance to low-cost ratio
The LM35-10C051212-10 is a versatile and powerful power converter that is ideal for a variety of applications. It is a reliable and cost-effective solution for businesses and consumers alike.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-10C051212-10 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Triple Output |
| Output Power | 33W |
| Series | LM35-10C |
| Part Number | LM35-10C051212-10 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 12V, -12V |
| Output Current | 3A, 1A, 0.5A |
