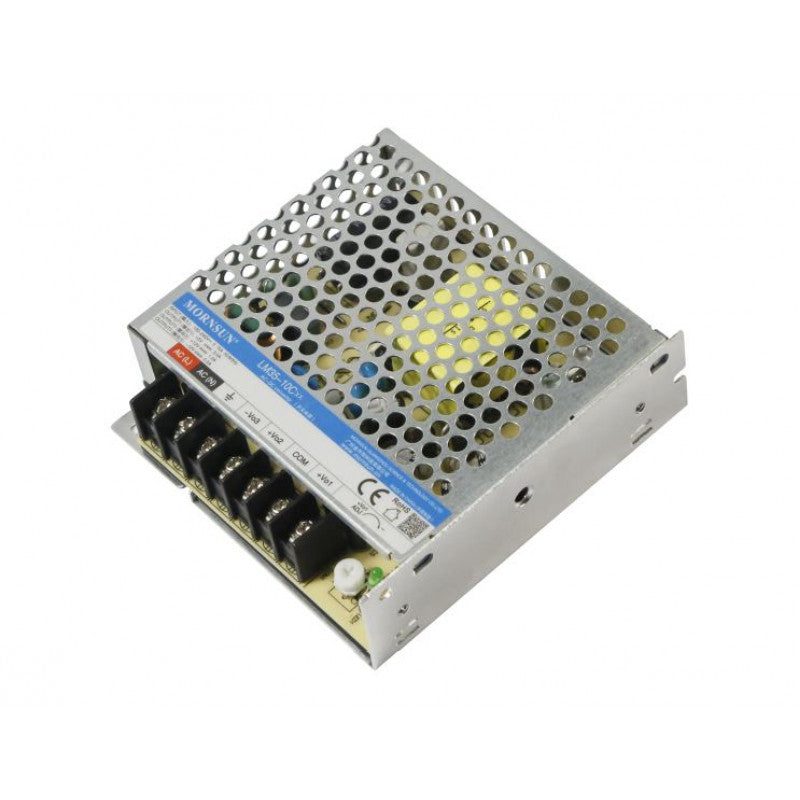

Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply
The LM35-10C051515-10 is a power converter with three independent output channels. It can be used in a wide range of environments, from -30°C to +70°C, without the need for a fan. The converter meets the requirements of several safety and emissions standards, and it offers a high level of performance and protection at a low cost. It is a good choice for a variety of applications, including industrial control equipment, instrumentation, and smart home and building equipment.
Features
- Three independent output channels
- Wide operating temperature range
- No fan required
- Meets safety and emissions standards
- High level of performance and protection
- Low cost
The LM35-10C051515-10 is a versatile and reliable power converter that can be used in a wide range of applications. It is a good choice for users who are looking for a high-performance, low-cost solution.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Triple Output |
| Output Power | 35W |
| Series | LM35-10C |
| Part Number | LM35-10C051515-10 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 15V, -15V |
| Output Current | 2.5A, 1A, 0.5A |
