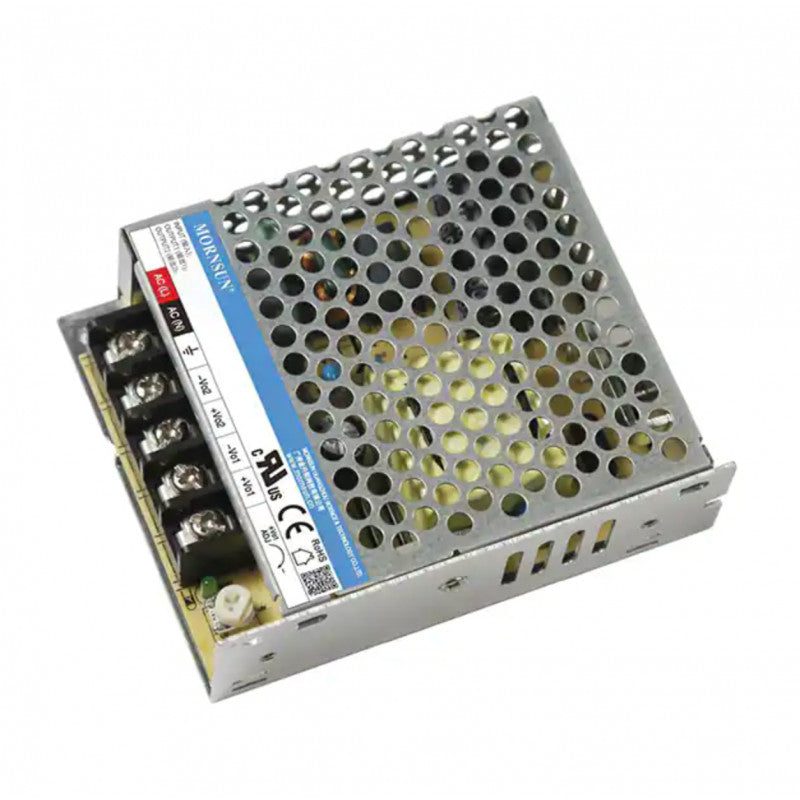

Mornsun LM35-10D0524-10 AC/DC 35W Enclosed Switching Power Supply
The LM35-10D0524-10 is a dual-output power converter that can be used in harsh environments. It has an ambient temperature range of -30°C to +70°C and does not require a fan for heat dissipation. The converter also meets the requirements of IEC61000, CISPR32/EN55032, and IEC/EN/UL62368/EN60335/GB4943 safety standards. It offers a high-performance to low-cost ratio and is ideal for a variety of industries, including industrial control equipment, instrumentation, and smart home and building equipment.
Features:
- Dual output
- Wide temperature range
- Fanless design
- Excellent EMC performance
- Meets safety standards
- High-performance to low-cost ratio
check out : Mornsun LM35-10D0512-10 AC/DC 35W Enclosed Switching Power Supply
The LM35-10D0524-10 is a versatile and reliable power converter that can be used in a variety of applications. It is ideal for use in harsh environments and offers a high-performance to low-cost ratio.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-10D0524-10 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Dual Output |
| Output Power | 35W |
| Series | LM35-10D |
| Part Number | LM35-10D0524-10 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 24V |
| Output Current | 2.2A, 1A |
