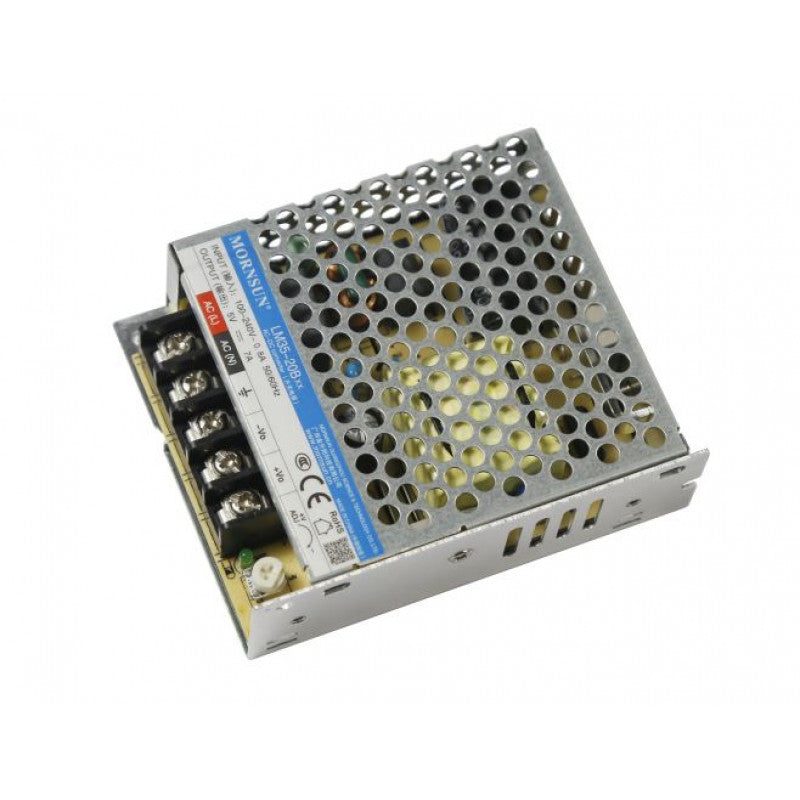

Mornsun LM35-20B12 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-20B12 AC/DC 35W Enclosed Switching Power Supply

The LM35-20B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input range of 85 to 264VAC, making it suitable for use in a variety of global markets. The LM35-20B12 also has a DC input voltage range of 12 to 36VDC, which allows it to be used with a variety of battery packs.

The LM35-20B12 has a number of features that make it a good choice for a variety of applications, including:

• Universal AC input: The LM35-20B12 can be powered from any AC outlet in the world, making it ideal for use in international travel.
• DC input voltage range: The LM35-20B12 can be powered from a variety of battery packs, making it ideal for use in portable devices.
• Low no load power consumption: The LM35-20B12 consumes very little power when it is not in use, helping to extend the battery life of your device.
• High efficiency: The LM35-20B12 converts over 90% of the input power into output power, helping to save energy.
• High reliability: The LM35-20B12 is designed for reliable operation in a variety of environments.
• Double or reinforced insulation: The LM35-20B12 is insulated from both the input and output power, helping to prevent electrical shock.

The LM35-20B12 offers excellent EMC performance and meets a variety of international standards, making it ideal for use in a variety of applications. It is widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-20B12 AC/DC 35W Enclosed Switching Power Supply

Specifications:
