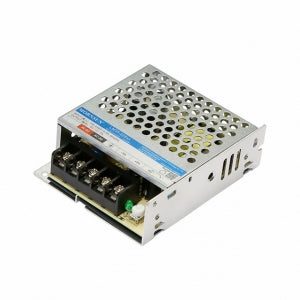

Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply

The LM35-22B15 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 165-264VAC or 180-370VDC, a regulated output voltage of 15V DC, a maximum output current of 2.4A, and an efficiency of up to 89%. The LM35-22B15 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and thermal overload protection.

Features:

• Universal input voltage: 165-264VAC or 180-370VDC
• Regulated output voltage: 15V DC
• Maximum output current: 2.4A
• Efficiency up to 89%
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Thermal overload protection

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply

Specifications:
