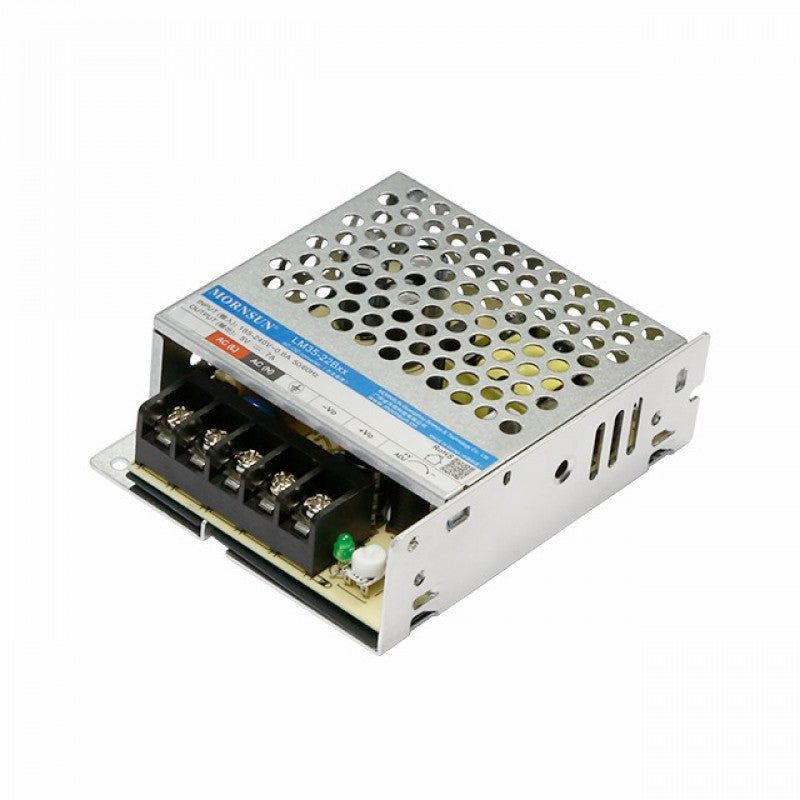

Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply

The LM35-22B24 series is an enclosed AC-DC switching power supply from Mornsun. It features a wide input voltage range, low no load power consumption, high efficiency, and high reliability. It is also double or reinforced insulated for safety. The LM35-22B24 series offers excellent EMC performance and meets a variety of international standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

• Wide input voltage range: 90 - 132VAC/180- 264VAC or 240 - 370VDC
• Low no load power consumption: < 0.75W@230VAC
• High efficiency: up to 90%
• High reliability: double or reinforced insulation
• Excellent EMC performance: meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards
• Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, smart home

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply

Specifications
