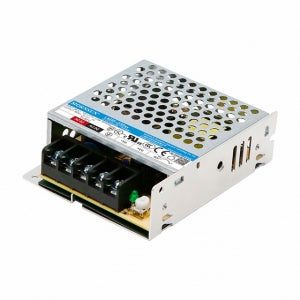

Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply

The LM35-23B05 is an industrial power supply manufactured by Mornsun. It is a type of 305RAC power supply with a wide input voltage range of 85VAC to 305VAC. It offers an output voltage of 5VDC and a maximum power output of 35W. The power supply has a high efficiency of 86% and provides isolation of up to 4000VAC.

Features

• Power(W): 35
• Vin(VAC): 85-305
• Vin(VDC): 120-430
• Vout(VDC): 5
• Iout: 7A
• Efficiency(%): 86
• Isolation: 4000VAC

check out : Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply

Specifications
