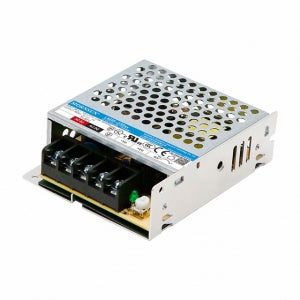

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

The LM35-23B24 is an enclosed AC/DC switching power supply from Mornsun. It has a universal AC input range of 85 to 305 VAC and an output voltage of 24 VDC. The power supply is also adjustable, with a maximum output current of 1.5 A. It has a high efficiency of up to 87% and can operate up to an altitude of 5000 m. The LM35-23B24 is certified to IEC/EN 62368-1 and UL 62368-1 for industrial safety. It has a LED indicator for power on and a no load power consumption of less than 0.3 Watts.

Features:

• Universal AC input range of 85 to 305 VAC
• Output voltage of 24 VDC
• Adjustable output voltage
• Maximum output current of 1.5 A
• High efficiency of up to 87%
• Operation up to an altitude of 5000 m
• IEC/EN 62368-1 and UL 62368-1 certified for industrial safety
• LED indicator for power on
• No load power consumption of less than 0.3 Watts

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

Specifications:
