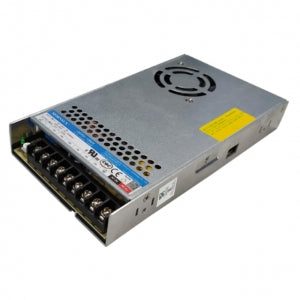

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

The LM350-10B24 is a 350W AC/DC switching power supply with a single output of 24V DC. It has a universal input voltage of 115VAC to 230VAC and a frequency range of 50Hz to 60Hz. The output voltage is adjustable from 0V to 24V and the output current is 14.6A. The power supply has a power factor correction (PFC) function that helps to improve the efficiency of the power supply and reduce the amount of power that is wasted. The power supply also has a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.

Features:

• Universal input voltage of 115VAC to 230VAC
• Frequency range of 50Hz to 60Hz
• Single output of 24V DC
• Output voltage adjustable from 0V to 24V
• Output current of 14.6A
• Power factor correction (PFC) function
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Short circuit protection

check out : Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

Specifications
