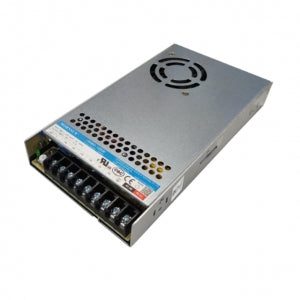

Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS

Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS

Sure. The LM350-12B05 is a 350W AC-DC switching power supply from Mornsun. It features a universal input voltage range of 176-264VAC or 240-373VDC, and can output a single regulated DC voltage of 12V. The power supply has a high efficiency of up to 87%, and is designed for use in a variety of applications, including industrial automation, control panels, and LED lighting.

check out : Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS

Specifications:
