Description

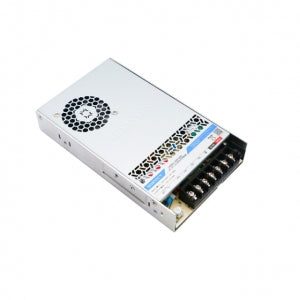

Mornsun LM350-22B15R2 AC/DC 350W Enclosed SMPS
The LM350-22B15R2 is an enclosed AC/DC converter from Mornsun. It is a compact and efficient power supply that is ideal for a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.
The LM350-22B15R2 features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC/BS EN62368, EN/IEC60335, EN651558, EN62477, GB4943 standards.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM350-22B15R2 AC/DC 350W Enclosed SMPS
Specifications:
Specification | Value |
---|---|
Output power | 350 W |
Output voltage | 15 V |
Output current | 23.3 A |
Efficiency | 86% |
Operating temperature | -25 to 70 °C |
Storage temperature | -40 to 85 °C |
Dimensions | 170 x 100 x 60 mm |
Weight | 1.5 kg |
