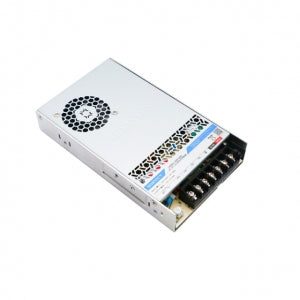

Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS

Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS

The LM350-22B24R2 is a 350W enclosed AC/DC power supply from Mornsun. It has a universal AC input of 176-264VAC or 240-370VDC, and a single output of 24V at 14.6A. The efficiency of the power supply is up to 88%, and it has a low no-load power consumption of <0.5W. The power supply is also certified to meet the following standards:

• IEC/EN61000-4
• CISPR32/EN55032
• UL/EN/IEC/BS EN62368
• EN/IEC60335
• EN651558
• EN62477
• GB4943

The LM350-22B24R2 is suitable for a wide range of applications, including industrial control, LED lighting, and telecommunications.

check out : Mornsun LM350-22B15R2 AC/DC 350W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS

Specifications:
