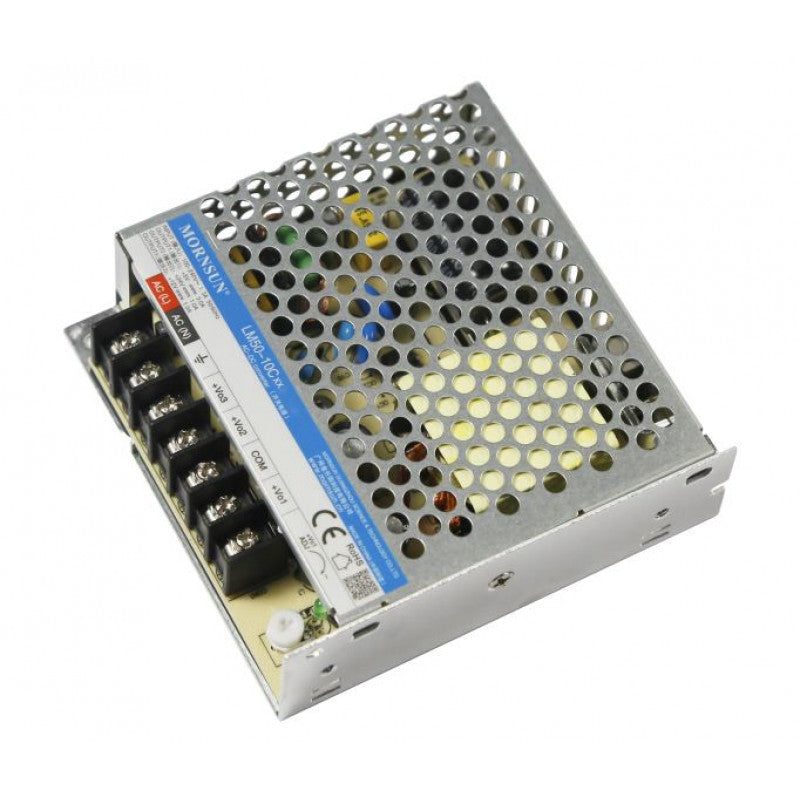

Mornsun LM50-10C052412-10 AC/DC 50W Enclosed Switching Power Supply
The LM50-10C052412-10 is a power converter that can provide three independent outputs, each of which can be used to power a different load. The converter can operate in a wide range of temperatures, from -30°C to +70°C, and does not require a fan for cooling. It also meets the requirements of several safety standards, including IEC/EN/UL62368, EN60335, and GB4943. In addition, the converter offers a variety of protection features, such as short circuit, overcurrent, and overvoltage protection. This makes it a reliable and versatile power solution for a variety of applications, such as industrial control equipment, instrumentation, and smart home and building equipment.
Features
- Three independent outputs
- Wide operating temperature range (-30°C to +70°C)
- Fanless design
- Meets safety standards IEC/EN/UL62368, EN60335, and GB4943
- Variety of protection features
- Reliable and versatile power solution for a variety of applications
check out : Mornsun LM50-10C051515-15 AC/DC 50W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-10C052412-10 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Triple Output |
| Output Power | 51W |
| Series | LM50-10C |
| Part Number | LM50-10C052412-10 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 24V, 12V |
| Output Current | 3A, 1A, 1A |
