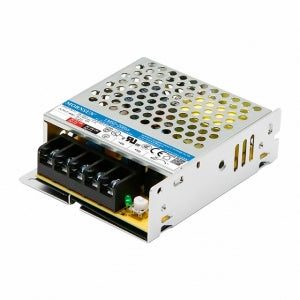

Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS

Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS

The LM50-20B12 is a 50 watt, 12 volt, 4.2 amp switch-mode power supply (SMPS) from Mornsun. It is a non-isolated, positive output SMPS that is designed for use in a variety of applications, including industrial automation, networking, and telecommunications.

The LM50-20B12 features a wide input voltage range of 100 to 240 VAC, making it suitable for use in a variety of global markets. It also features a high efficiency of up to 88%, which helps to reduce power consumption and heat dissipation.

The LM50-20B12 is a compact and lightweight unit that measures just 2.2 x 2.2 x 1.2 inches and weighs only 0.4 pounds. It is also built to withstand harsh environmental conditions, with an operating temperature range of -20 to 60 degrees Celsius and a relative humidity range of 0 to 95%.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS

Specifications:
