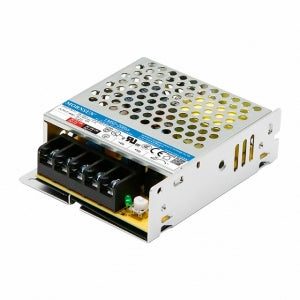

Mornsun LM50-20B24 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-20B24 AC/DC 50W Enclosed Switching Power Supply

The LM50-20B24 is a 50W, 24V DC enclosed AC/DC converter from Mornsun. It has a universal input voltage range of 85-264VAC or 120-373VDC, and can output up to 2.2A of current. The LM50-20B24 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.

Features:

• 50W output power
• 24V DC output voltage
• Universal input voltage range of 85-264VAC or 120-373VDC
• Output current up to 2.2A
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Short circuit protection

check out : Mornsun LM50-22B12 AC/DC 50W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM50-20B24 AC/DC 50W Enclosed Switching Power Supply

Specifications:
