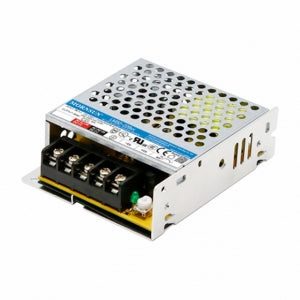

Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply

The LM50-22B15 is a 50W AC/DC switching power supply from Mornsun. It features an AC input voltage range of 85 to 264VAC, a DC output voltage of 15VDC, and a maximum output current of 3.4A. The LM50-22B15 is also equipped with a number of features that make it ideal for a variety of applications, including:

• High efficiency: The LM50-22B15 has a high efficiency of up to 88%, which helps to reduce energy consumption and heat dissipation.
• Low no-load power consumption: The LM50-22B15 has a low no-load power consumption of less than 1W, which helps to save energy when the power supply is not in use.
• Double or reinforced insulation: The LM50-22B15 features double or reinforced insulation, which helps to protect against electrical shock.
• Excellent EMC performance: The LM50-22B15 meets a number of EMC standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943.

The LM50-22B15 is a versatile and reliable AC/DC switching power supply that is ideal for a wide range of applications. It is commonly used in industrial automation, control panels, LED lights, and other applications that require a reliable and efficient power supply.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply

Specifications:
