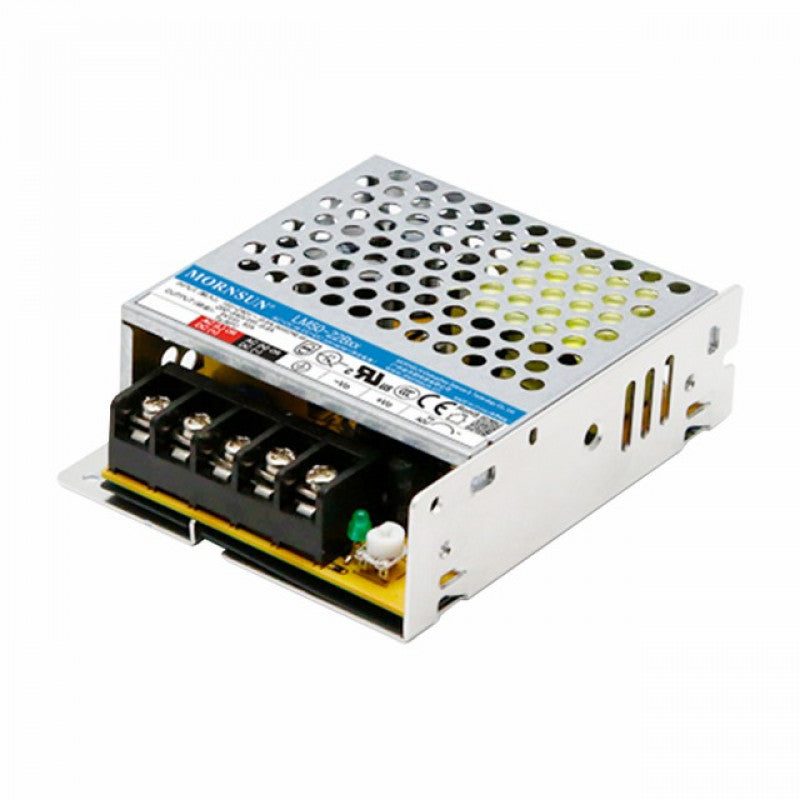

Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply

The LM50-22B24 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage range of 165 - 264VAC or 180 - 370VDC, accepts DC input voltage, is cost-effective, has low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets a variety of international standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

• Universal input voltage range: 165 - 264VAC or 180 - 370VDC
• Accepts DC input voltage
• Cost-effective
• Low no load power consumption
• High efficiency
• High reliability
• Double or reinforced insulation
• Excellent EMC performance
• Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
• Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, and smart home

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply

Specifications:
