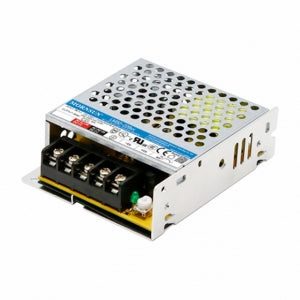

Mornsun LM50-22B48 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-22B48 AC/DC 50W Enclosed Switching Power Supply

The LM50-22B48 is a 52.8W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 165-264 VAC or 180-370 VDC, and can accept AC or DC input (dual-use of same terminal). The LM50-22B48 has an operating ambient temperature range of -30℃ to +70℃, low standby power consumption, high efficiency, and high I/O isolation test voltage up to 4000 VAC. It also has low ripple & noise, output short circuit, over-current, over-voltage protection, over-voltage class Ⅲ (designed to meet EN61558), and can operate at altitudes up to 5000 m.

Features:

• Universal input voltage of 165-264 VAC or 180-370 VDC
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range of -30℃ to +70℃
• Low standby power consumption
• High efficiency
• High I/O isolation test voltage up to 4000 VAC
• Low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Over-voltage class Ⅲ (designed to meet EN61558)
• Can operate at altitudes up to 5000 m

check out : Mornsun LM50-22B36 AC/DC 50W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM50-22B48 AC/DC 50W Enclosed Switching Power Supply

Specifications:
