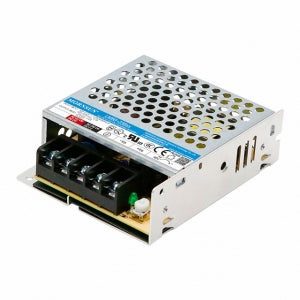

Mornsun LM50-23B15 AC/DC 50W Enclosed Switching Power Supply
The LM50-23B15 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 15V and can be powered from 85 to 305 VAC or 120 to 430 VDC. The converter is rated for 50W output and has a ripple of less than 1%. It is also protected against overvoltage, overcurrent, and short circuit.
Features:
- Single output of 15V
- Input voltage range: 85 to 305 VAC or 120 to 430 VDC
- Output power: 50W
- Ripple: <1%
- Overvoltage protection
- Overcurrent protection
- Short circuit protection
check out : Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-23B15 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Output power | 50W |
| Single output | 15V |
| Dimensions | 100 x 60 x 30mm |
| Weight | 0.7kg |
| Operating temperature | -20 to 60°C |
| Storage temperature | -40 to 85°C |
