Description

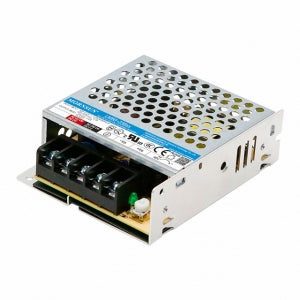

Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply
The LM50-23B24 is a 24V, 2.2A, 52.8W AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can be used in a variety of applications, such as industrial control, automation, and telecommunications.
The LM50-23B24 features a high efficiency of up to 88%, which helps to reduce power consumption and heat dissipation. It also has a built-in thermal overload protection circuit that prevents the unit from overheating.
The LM50-23B24 is a compact and lightweight unit that is easy to install and use. It is also RoHS compliant and comes with a one-year warranty.
Features:
- 24V, 2.2A output
- 52.8W output power
- Wide input voltage range: 85-305VAC or 120-430VDC
- High efficiency up to 88%
- Built-in thermal overload protection
- Compact and lightweight design
- RoHS compliant
- One-year warranty
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Specification | Value |
|---|---|
| Output voltage | 24V |
| Output current | 2.2A |
| Output power | 52.8W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Efficiency | up to 88% |
| Thermal overload protection | Yes |
| Dimensions | 170 x 100 x 50mm |
| Weight | 1.5kg |
