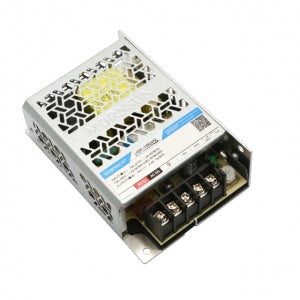

Mornsun LM50-23B24R2 AC/DC 50W Enclosed Switching Power Supply

The LM50-23B24R2 is a compact, enclosed AC/DC power supply from Mornsun. It has a universal AC input voltage range of 80-305 VAC or 100-430 VDC, and a single output of 24 VDC at 2.2A. The efficiency of the power supply is up to 89.5%, and it has an isolation voltage of 4000 VAC. The power supply is also protected against overvoltage, undervoltage, overcurrent, and short circuits.

The LM50-23B24R2 is a versatile power supply that can be used in a variety of applications, including industrial control, automation, and telecommunications. It is also a good choice for use in harsh environments, as it is protected against dust and moisture.

check out : Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations, and shall be handled by qualified units
• The power supply is considered a component which will be installed into a final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS

Package Includes:

1 x Mornsun LM50-23B24R2 AC/DC 50W SMPS
