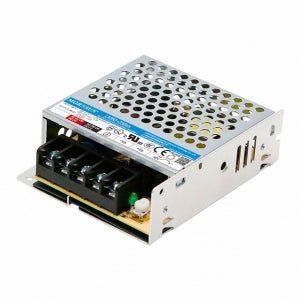

Mornsun LM50-23B36 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-23B36 AC/DC 50W Enclosed Switching Power Supply

The LM50-23B36 is a 36V, 52.2W enclosed AC/DC converter from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 1.45A of current. The converter is also highly efficient, with an efficiency rating of up to 89%. It is also isolated from the input voltage by a 4000VAC barrier, making it safe to use in hazardous environments.

The LM50-23B36 is a versatile and reliable power supply that can be used in a wide variety of applications. It is ideal for use in industrial, medical, and commercial settings.

Features:

• 36V, 52.2W output
• Wide input voltage range: 85-305VAC or 120-430VDC
• Up to 1.45A output current
• High efficiency: up to 89%
• Isolated from input voltage by a 4000VAC barrier
• Rugged and durable construction
• Suitable for use in hazardous environments

check out : Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM50-23B36 AC/DC 50W Enclosed Switching Power Supply

Specifications:
