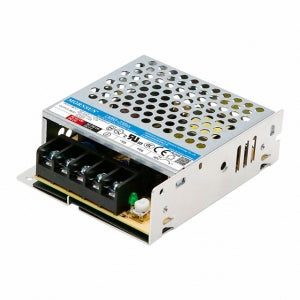

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
The LM50-23B48 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 48V at 1.1A, for a total power output of 52.8W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 90%. The isolation voltage is 4000VAC.
The LM50-23B48 is a compact and lightweight unit, measuring just 2.25 x 3.75 x 5.25 inches and weighing 1.2 pounds. It is made of durable materials and is designed to withstand harsh environments. The LM50-23B48 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, and short circuit protection.
The LM50-23B48 is a versatile power supply that can be used in a wide variety of applications. It is ideal for use in industrial, commercial, and consumer electronics applications.
check out : Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Single output | 48V at 1.1A |
| Total power output | 52.8W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Efficiency | 90% |
| Isolation voltage | 4000VAC |
| Dimensions | 2.25 x 3.75 x 5.25 inches |
| Weight | 1.2 pounds |
