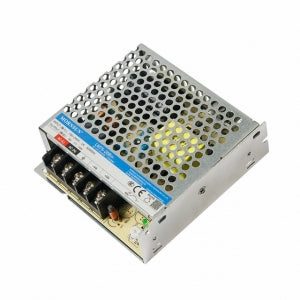

Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

The LM75-20B24 is a 24V, 75W, universal input AC/DC power supply from Mornsun. It features a wide input voltage range of 85-264VAC or 120-370VDC, making it suitable for use in a variety of applications. The power supply also features a high efficiency of up to 90%, which helps to reduce power consumption and heat dissipation. In addition, the LM75-20B24 is protected against overvoltage, overcurrent, and short circuit, providing peace of mind for users.

check out : Mornsun LM75-22B12 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Specifications:
