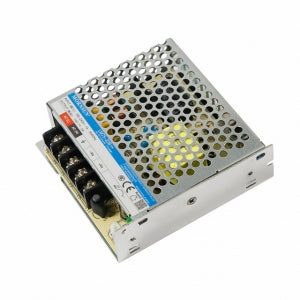

Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply

The LM75-22B05 is a 70W AC/DC enclosed power supply that is ideal for a variety of applications, including industrial control, medical equipment, and telecommunications. It features a universal input voltage of 85-264VAC or 120-373VDC, a single output voltage of 5V, and a maximum output current of 14A. The LM75-22B05 also features a high efficiency of up to 86%, which helps to reduce power consumption and operating costs.

Features

• Universal input voltage of 85-264VAC or 120-373VDC
• Single output voltage of 5V
• Maximum output current of 14A
• High efficiency of up to 86%
• Overvoltage, undervoltage, and overcurrent protection
• Short circuit protection
• Thermal overload protection

check out : Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply

Specifications
