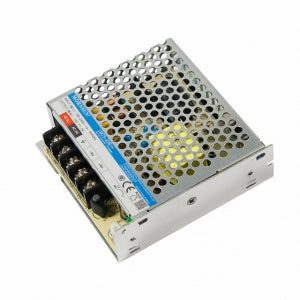

Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply

The LM75-22B48 is a 75W, universal input, enclosed AC/DC power supply from Mornsun. It has a wide input voltage range of 165-264VAC or 200-373VDC, and can output a single regulated DC voltage of 48V at up to 1.6A. The power supply is also equipped with a number of features for safety and reliability, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.

Features:

• Universal input voltage range of 165-264VAC or 200-373VDC
• Single regulated DC output of 48V at up to 1.6A
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Short circuit protection
• Built-in fan for cooling
• Enclosed housing for protection from dust and debris

check out : Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply

Specifications:
