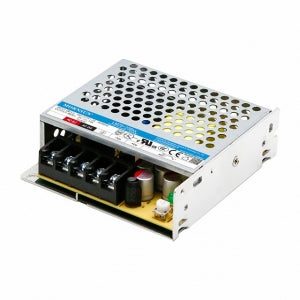

Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B05 is a 5V, 70W, enclosed AC/DC converter with a wide input voltage range of 85-305 VAC or 120-430 VDC. It has a high efficiency of up to 85% and can output up to 14A of current. The LM75-23B05 is also isolated from the input voltage, making it safe to use in applications where there is a risk of electrical shock.

Features:

• 5V output
• 70W output power
• Wide input voltage range (85-305 VAC or 120-430 VDC)
• High efficiency (up to 85%)
• 14A output current
• Isolated from input voltage

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply

Specifications:
