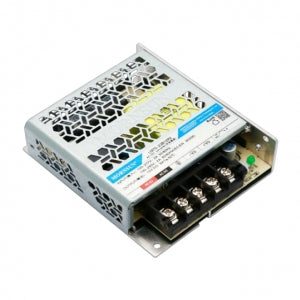

Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS

Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS

The LM75-23B12R2 is a compact, enclosed AC/DC converter that provides a regulated 12V output at up to 6A. It has a universal input voltage range of 80-305VAC or 100-430VDC, making it suitable for a wide variety of applications. The LM75-23B12R2 also features a high efficiency of up to 89%, low no-load power consumption, and double or reinforced insulation for safety.

check out : Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS

Package Includes:

1 x Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS

Specifications
