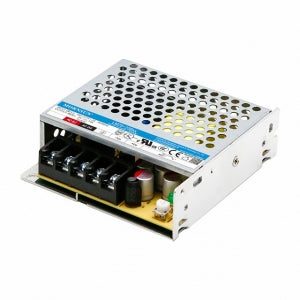

Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B15 is a 15V, 2.5A enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage range of 85-305VAC, a DC input voltage range of 120-430VDC, and a high efficiency of up to 95%. The LM75-23B15 also has a low no-load power consumption of less than 1W, making it a cost-effective and energy-efficient solution for a variety of applications.

Features:

• Universal AC input voltage range of 85-305VAC
• DC input voltage range of 120-430VDC
• High efficiency of up to 95%
• Low no-load power consumption of less than 1W
• Enclosed housing for protection against dust and moisture
• Built-in thermal protection for overload and overtemperature conditions
• Short circuit protection
• Overvoltage protection
• Overcurrent protection

check out : Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Specifications:
