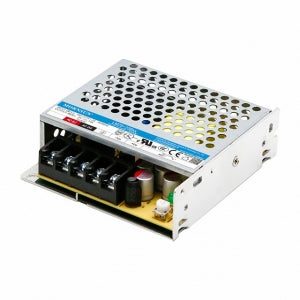

Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B24 is a 24V, 3.2A, 76.8W enclosed AC-DC switching power supply from Mornsun. It has a universal AC input voltage range of 85 to 305VAC and a DC input voltage range of 120 to 430VDC. The efficiency of the LM75-23B24 is up to 89%, and it has an isolation voltage of 4000VAC. The power supply is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and overload protection.

Features:

• Universal AC input voltage range of 85 to 305VAC
• DC input voltage range of 120 to 430VDC
• Output voltage of 24V
• Output current of 3.2A
• Efficiency of up to 89%
• Isolation voltage of 4000VAC
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Overload protection

check out : Mornsun LM75-22B48 AC/DC 75W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM75-23B24 AC/DC 75W Enclosed Switching Power Supply

Specifications
