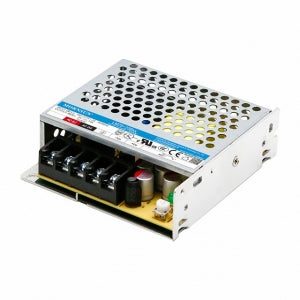

The LM75-23B36 is a 36VDC, 2.1A, 75.6W, enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85 - 305VAC or 120 - 430VDC, and can accept AC or DC input (dual-use of same terminal). It has an operating ambient temperature range of -30℃ to +70℃, low standby power consumption, high efficiency, high I/O isolation test voltage up to 4000VAC, low ripple and noise, output short circuit, over-current, and over-voltage protection, over-voltage class Ⅲ, and can operate at altitudes up to 5000m.

Features

• Universal input voltage of 85 - 305VAC or 120 - 430VDC
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range of -30℃ to +70℃
• Low standby power consumption and high efficiency
• High I/O isolation test voltage of up to 4000VAC
• Low ripple and noise
• Output short circuit, over-current, and over-voltage protection
• Over-voltage class Ⅲ
• Operating altitude up to 5000m

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply
