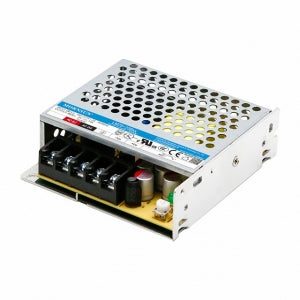

Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B48 is a 48V, 1A enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305VAC or 120 to 430VDC, as well as a low no-load power consumption of less than 0.5W. The LM75-23B48 is also highly efficient, with a typical efficiency of over 90%.

Features:

• Universal AC input: 85 to 305VAC or 120 to 430VDC
• Output voltage: 48V
• Output current: 1A
• Low no-load power consumption: less than 0.5W
• High efficiency: typical efficiency of over 90%

check out : Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply

Specifications
