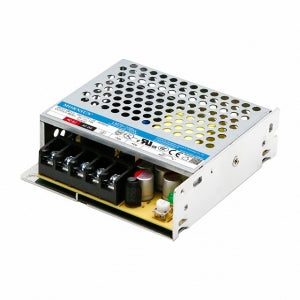

Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B55 is a 75W, 230VAC input, 55VDC output, 1.36A current, 90.5% efficient enclosed SMPS power supply from Mornsun. It features a universal input voltage range of 85-305VAC or 120-430VDC, a ripple and noise <1%, and an isolation voltage of 4000VAC. The LM75-23B55 is perfect for a variety of applications, including industrial control, instrumentation, and networking.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply

Specifications
