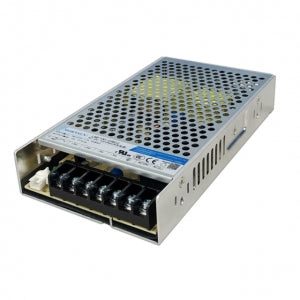

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

The LMF100-23B15 is a 15V, 6.7A, 100.5W enclosed AC/DC converter from Mornsun. It has an input voltage range of 85-305VAC or 120-430VDC, and an output voltage of 15V. The efficiency is 86%, and the isolation voltage is 4000VAC. The converter is housed in a compact, rugged enclosure that is suitable for a variety of applications.

Features:

• 15V, 6.7A, 100.5W output
• Input voltage range: 85-305VAC or 120-430VDC
• Efficiency: 86%
• Isolation voltage: 4000VAC
• Compact, rugged enclosure

check out : Mornsun LMF150-23B48 AC/DC Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF100-23B48 AC/DC 100W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LMF100-23B15 AC/DC 100W Enclosed Switching Power Supply

Specifications
