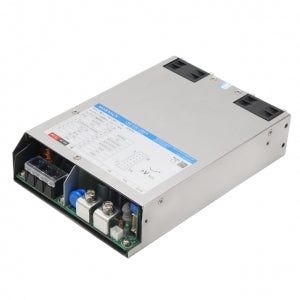

Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply

Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply

The LMF1000-20B27 is an enclosed AC/DC switching power supply from Mornsun. It features a universal AC input of 90-264VAC, a DC input of 120-370VDC, and an output voltage of 27VDC. The power supply has a maximum output current of 37.3A and a maximum output power of 1000W. It is also equipped with a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce its emissions.

The LMF1000-20B27 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features:

• Universal AC input of 90-264VAC
• DC input of 120-370VDC
• Output voltage of 27VDC
• Maximum output current of 37.3A
• Maximum output power of 1000W
• Power factor correction (PFC) function
• Cost-effective and reliable
• Suitable for a wide range of applications

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF1000-20B27 AC/DC1000W Enclosed Switching Power Supply

Specifications
