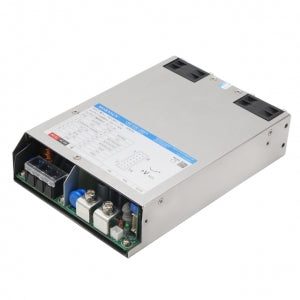

Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply

Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply

The LMF1000-20B48 is a universal AC-DC switching power supply from Mornsun. It accepts both AC and DC input voltages, making it a versatile and cost-effective solution for a wide range of applications. The power supply features low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also meets a variety of industry standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN60601, and GB4943. The LMF1000-20B48 is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

• Universal AC input
• Accepts DC input voltage
• Low no load power consumption
• High efficiency
• High reliability
• Double or reinforced insulation
• Meets industry standards
• Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications

check out : Mornsun LMF1000-20B12 AC/DC1000W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF1000-20B48 AC/DC1000W Enclosed Switching Power Supply

Specifications
