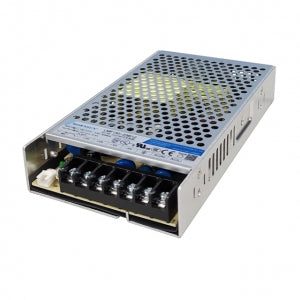

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

The LMF150-23B24 is a 24V, 151W AC/DC converter from Mornsun. It features a universal input voltage of 85-305V AC or 120-430VDC, dual-use AC/DC input, an operating temperature range of -30℃ to +70℃, built-in active PFC function, high I/O isolation test voltage up to 4000VAC, output short circuit, over-current, over-voltage, and over-temperature protection, remote ON/OFF control, over-voltage class Ⅲ (designed to meet EN61558), and operating altitude up to 5000m.

The LMF150-23B24 is a versatile and reliable power supply that can be used in a variety of applications, including industrial, medical, and telecommunications. It is also ideal for use in harsh environments, such as those with extreme temperatures or high altitudes.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Specifications
