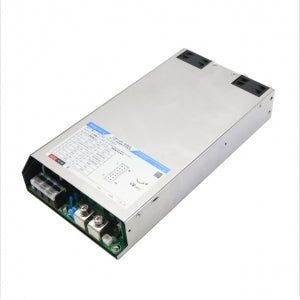

Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS

The LMF1500-20B24 is a 1500W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-264VAC and a DC input voltage of 120-370VDC. The output voltage is adjustable from 12V to 24V with a maximum current of 62.5A. The power supply also has a 5V/2A output for powering peripherals.

The LMF1500-20B24 is designed for use in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. It is a cost-effective and reliable solution for a wide range of power needs.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF1500-20B48 AC/DC 1500W Enclosed SMPS

Package Includes:

1 x Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS

Specifications:
