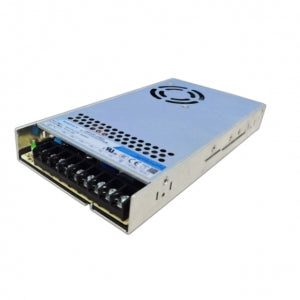

The LMF200-23B05 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 5V at 40A, for a total power output of 200W. The input voltage range is 85-305VAC or 120-430VDC. The efficiency is 85%, and the isolation voltage is 4000VAC. The converter is conformal coated for protection against harsh environments.

Features:

• Single output of 5V at 40A
• Total power output of 200W
• Input voltage range of 85-305VAC or 120-430VDC
• Efficiency of 85%
• Isolation voltage of 4000VAC
• Conformal coated for protection against harsh environments

check out : Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
