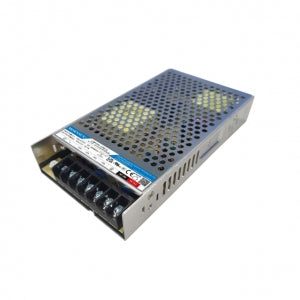

Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply

Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply

The LMF200-23B24 is an enclosed AC/DC converter from Mornsun. It has a single output of 24V at 8.33A, for a total power output of 201W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 88%. The isolation voltage is 4000VAC.

The LMF200-23B24 is a versatile power supply that can be used for a variety of applications, including industrial control, medical equipment, and telecommunications. It is also suitable for use in harsh environments, thanks to its IP65 rating.

check out : Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply

Specifications
