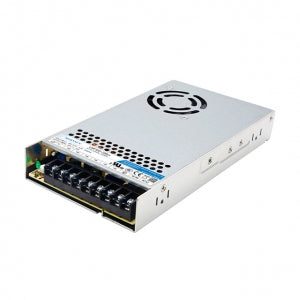

Mornsun LMF320-23B05 AC/DC 320W Enclosed Switching Power Supply

Mornsun LMF320-23B05 AC/DC 320W Enclosed Switching Power Supply

The LMF320-23B05 is a 320W, 5V AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 64A of current. The LMF320-23B05 is also equipped with a number of features that make it ideal for industrial applications, including a conformal coating that protects it from harsh environments, and a PFC circuit that helps to improve efficiency.

Features:

• 320W output power
• 5V output voltage
• Wide input voltage range: 85-305VAC or 120-430VDC
• Up to 64A of output current
• Conformal coating for protection in harsh environments
• PFC circuit for improved efficiency

check out : Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LMF320-23B05 AC/DC 320W Enclosed Switching Power Supply

Specifications
