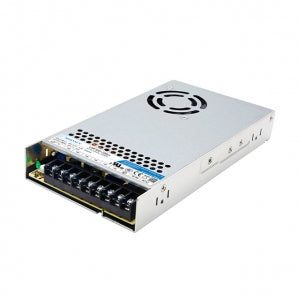

Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply

Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply

The LMF320-23B27 is a 320W AC/DC enclosed switching power supply from Mornsun. It features a universal input voltage range of 85-305VAC/120-430VDC, an output voltage of 27VDC, an output current of 11.9A, and an efficiency of up to 88%. The LMF320-23B27 is also equipped with a number of safety features, including short circuit protection, over current protection, and over voltage protection. It is a reliable and versatile power supply that is suitable for a wide range of applications, including industrial automation, LED lighting, and telecommunications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply

Specifications
